YMOCA-TED-LR

NEW PRODUCT! Probably available Q1 2025

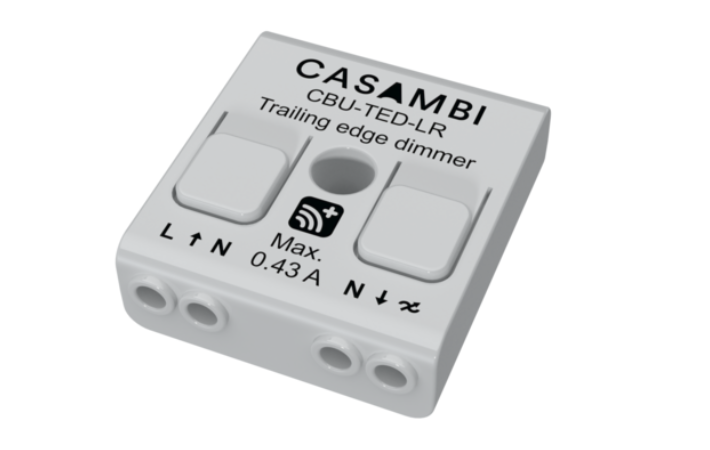

The CBU TED module is an elegant Bluetooth-controlled trailing edge dimmer from CASAMBI®, which enables continuous dimming for all available illuminants. It can be installed both behind a conventional wall switch or directly in a luminaire or a terminal box. With the new long-range feature, you can now also enjoy reliable control from even greater distances.

Product data

Connection cross-section
1.5 mm²
Consumption standby
0.3 W
Type of dimming
TRIAC
Starting time
100 ms
System performance
100 W
Communication type
Bluetooth
Input voltage AC
220-240V / 50-60Hz V
Frequency band
2,403 – 2,479 GHz
Starting current
10 A
Max. transmission power
+4 dBm
