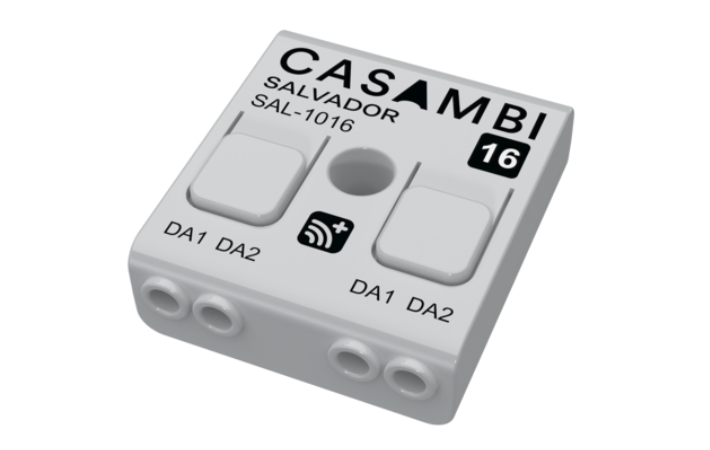

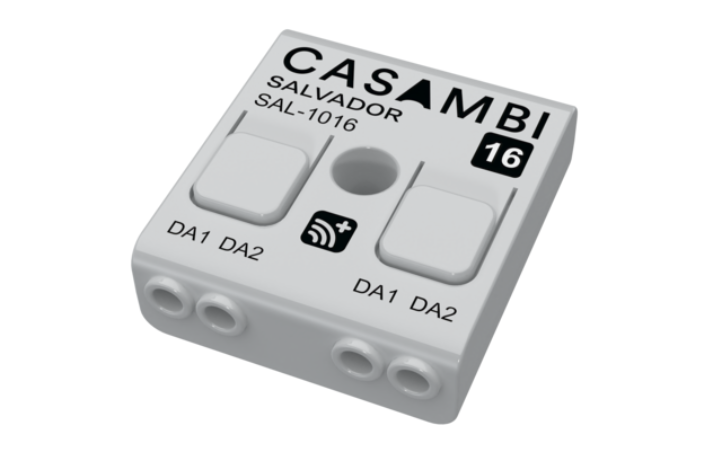

YMOCA-SAL-1016
The Salvador 1000 series seamlessly integrates DALI-wired devices into the Casambi system. Once integrated, DALI devices appear as virtual devices in the Casambi network.
This product supports industry standards such as DALI D4i, DALI DT6, and DALI DT8.
When designing lighting control systems, it is important to note that DALI controls, such as switches and sensors, should not be connected to the products of the Salvador 1000 series.
An external power supply is required for the DALI bus to operate the Salvador 1000 series.
Product data
Product dimensions Length
40,4 mm
Storage temperature range (Max)
+75 °C
Product dimensions Width
36,3 mm
Ambient temperature (Max)
+65 °C
Product dimensions Height
14 mm
Ambient temperature (Min)
-20 °C
Product weight
15 g
Ambient temperature (Max)
+55 °C
Packaging dimensions Length
170 mm
External power supply unit
DALI Power Supply
Packaging dimensions Width
110 mm
Consumption in standby mode
0,2 W
Packaging dimensions Height
20 mm
Communication type
DALI 2, CASAMBI, DALI 1, Bluetooth
Weight incl. packaging
50 g
Frequency band
2,403 – 2,479 GHz
Color
white
Max. transmission power
+8 dBm
Storage temperature range (Min)
-20 °C
DALI bus supply
External
DALI bus voltage
9,5 – 22,5 VDC
DALI output current
max. 250 mA
Number of DALI addresses
16 pcs.
CASAMBI Repeater
Yes
Certifications
CE
Customs tariff number
94054231
