YMOCA-ROLLO-LR

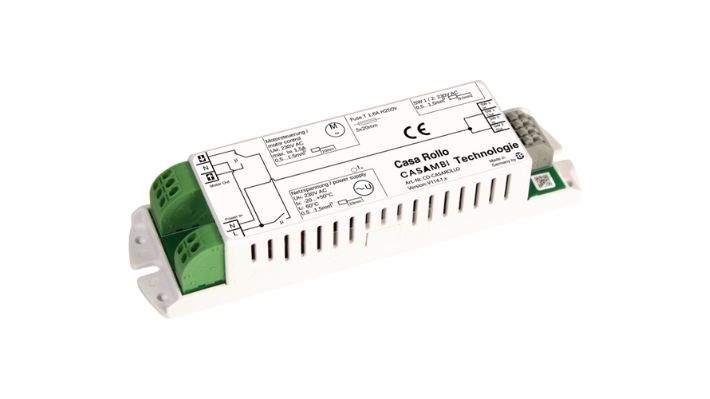

The CASA ROLLO roller shutter control offers you convenient control of roller shutters, blinds or awnings via buttons or the practical app. With the additional “Long Range” feature, you can now enjoy reliable control even from greater distances.

Product data

Product dimensions length
143 mm
ambient temperature (min)
-20 °C
Product dimensions width
38 mm
ambient temperature (max)
+50 °C
Product dimensions height
26 mm
Product.Casambi-Products.MaxOutputVoltageAC
230 V
product weight
0.07 kg
consumption in standby mode
0.15 W
Color
white
load types
inductive load
housing material
plastic
switching output
345 VA
Storage temperature range (min)
-25 °C
switching cycles
50,000 pieces
storage temperature range (Max)
+75 °C
communication type
CASAMBI
ambient temperature (max)
60 °C
frequency band
2.403 – 2.479 GHz
connection cross-section
1.5 mm²
CASAMBI Repeater
Yes
button connection
2
protection class (IP)
IP20
certifications
CE, RoHS
mounting type
ceiling installation
customs tariff number
85365005
EAN
4260766556968
