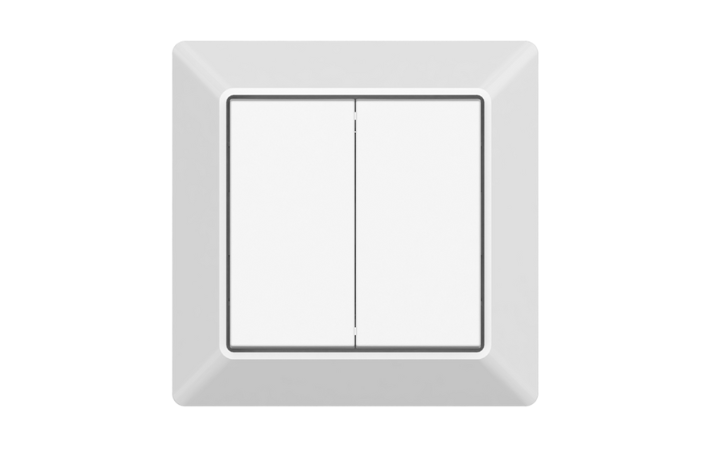

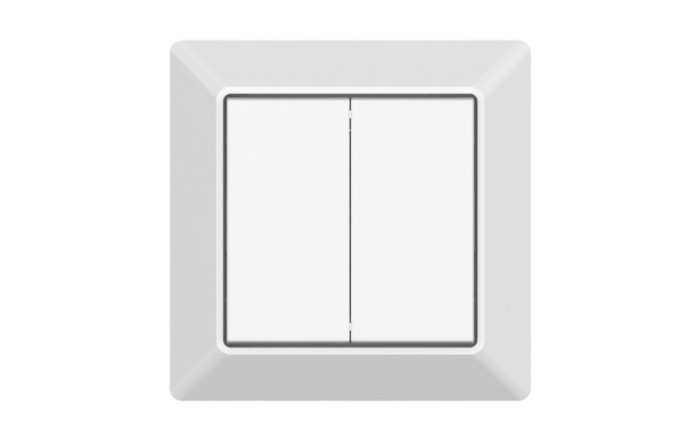

YMOCA-QA-DB

Dual push button (double wall switch) universal, battery-free wireless sensor solutions for communicating with the CASAMBI® app.

Product data

Product dimensions Length
80.5 mm
Storage temperature range (Max)
+65 °C
Product dimensions Width
80.5 mm
Ambient temperature (Min)
-25 °C
Product dimensions Height
14.7 mm
Ambient temperature (Max)
+65 °C
Packaging dimensions Length
100 mm
Communication type
CASAMBI
Packaging dimensions Width
110 mm
Frequency band
2,403 – 2,479 GHz
Packaging dimensions Height
55 mm
Max. transmission power
+4 dBm
Weight incl. packaging
0.12 kg
CASAMBI Repeater
No
Color
white
Push-button connection
4
Housing material
Plastic
Certifications
CE, RoHS
Storage temperature range (Min)
-25 °C
Mounting
Universal
Customs tariff number
85365080
EAN
6971542122489
