YMOCA-PWM-05

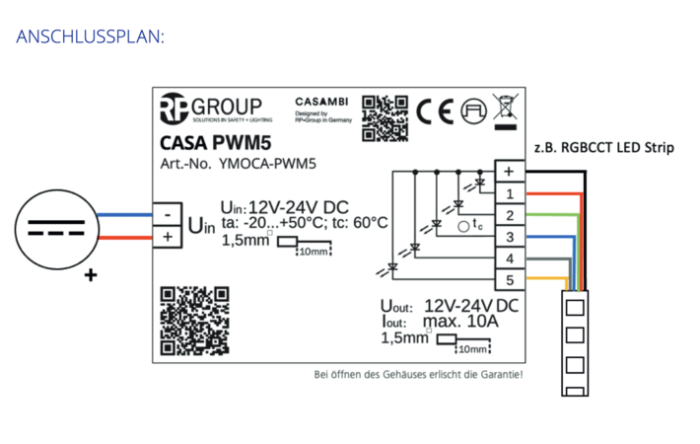

The CASA PWM5 unit enables direct access to preconfigured functions on the CASAMBI® lighting control. For instance the dimming, switching on and off of luminaires and also setting the colours. Integration of the fifth channel means that RGBCCT is now possible. 5 channels, output voltage 12-24V DC. Maximum output rating of 100W (24V) per channel, with a total of 170 W (24V) for all 5 channels. Strain relief and a terminal cover are integrated.

Connected luminaires remain free of flickers down to low dimming levels.

Product data

Product dimensions Length
143 mm
Ambient temperature (Max)
60 °C
Product dimensions Width
47 mm
Connection cross-section
1.5 mm²
Product dimensions Height
29 mm
Type of dimming
PWM
Packaging dimensions Length
162 mm
System performance
170 W
Packaging dimensions Width
51 mm
Consumption standby
0.4 W
Packaging dimensions Height
31 mm
DC suitability
24 V
Color
white
Electrical design
with external control gear
Housing material
Plastic
Ambient temperature (Min)
-20 °C
Certification
CE, RoHS
Ambient temperature (Max)
+40 °C
Protection type (IP)
IP20
Input voltage DC
12 V
max. input voltage DC
24 V
Communication type
CASAMBI
Frequency band
2,403 – 2,479 GHz
Max. transmission power
+4 dBm
CASAMBI Repeater
Yes
Customs tariff number
85365005
EAN
4250835520112
