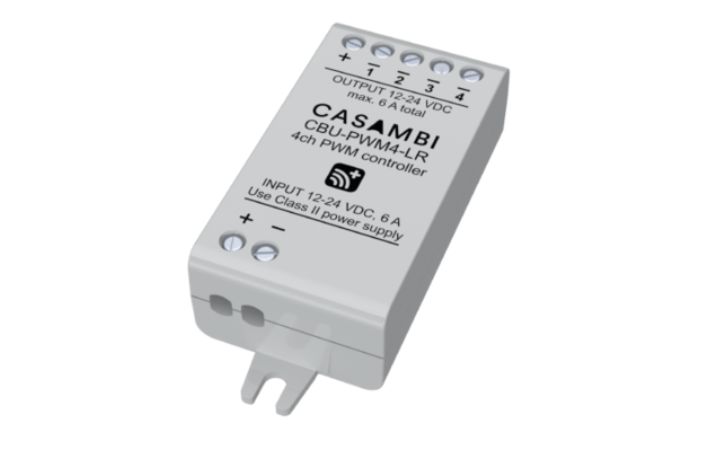

YMOCA-PWM-04-LR

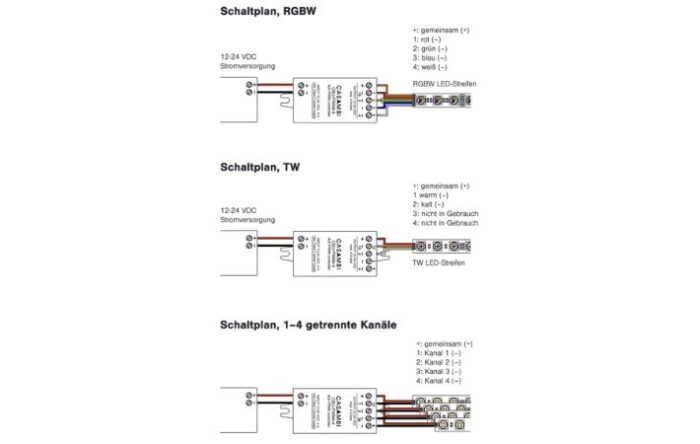

This module can be fitted wherever the user needs it and enables direct access to all key functions of the CASAMBI® lighting control. For instance the dimming, switching on and off of luminaires and also setting the RGB and RGBW in the colour selection field. The timer can also be used to preset various scenes.

And now with the feature Longe Range.

Product data

Product dimensions Length
72,6 mm
Ambient temperature (Min)
-20 °C
Product dimensions Width
30 mm
Ambient temperature (Max)
+45 °C
Product dimensions Height
18 mm
Input voltage DC
12-24 V
Product weight
23 g
Max. Output voltage DC
12-24 V
Color
white
Max. Output current
6 A
Housing material
Plastic
External power supply unit
Yes
Storage temperature range (Min)
-25 °C
Constant Current Voltage
CV
Storage temperature range (Max)
+75 °C
Consumption in standby mode
0,3 W
Ambient temperature (Max)
+75 °C
Dimming function
PWM
Electrical design
with external control gear
Communication type
CASAMBI
Frequency band
2,403 – 2,479 GHz
Max. transmission power
+8 dBm
CASAMBI Repeater
Yes
Certifications
CE, RoHS
Connection cross-section
1,5 mm²
Customs tariff number
85365005
EAN
4262483024799
