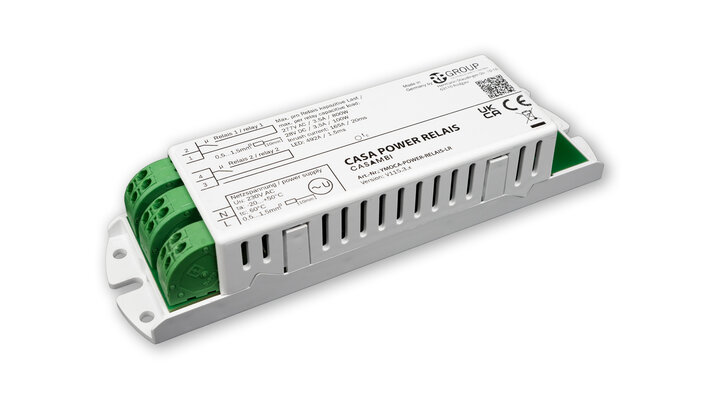

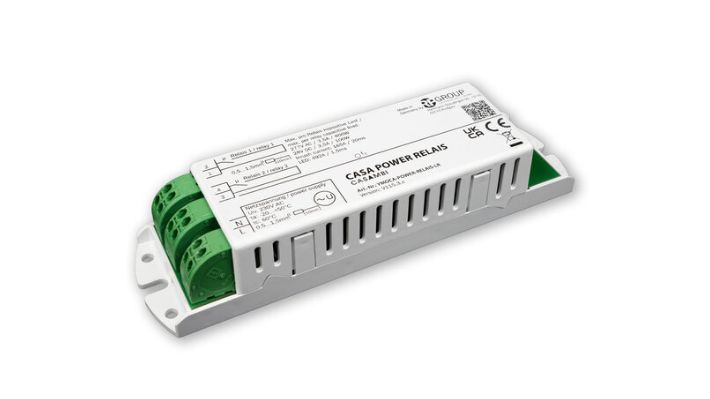

YMOCA-POWER-RELAIS-LR

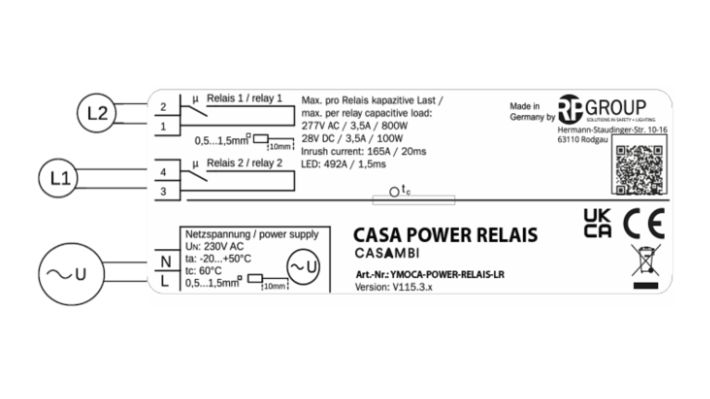

The CASA Power Relay is equipped with two potential-free switching contacts. The specified maximum switching capacity can be achieved independently for each of these contacts. In addition, the individual control of both contacts enables flexible application. The extended “Long Range” feature ensures reliable control even over long distances.

Product data

Product dimensions length
143 mm
storage temperature range (Max)
75 °C
Product dimensions width
38 mm
ambient temperature (max)
60 °C
Product dimensions height
27 mm
supply
network
product weight
0.03 kg
connection cross-section
1.5 mm²
Packaging dimensions length
162 mm
ambient temperature (min)
-20 °C
Packaging dimensions width
51 mm
ambient temperature (max)
+50 °C
Packaging dimensions height
31 mm
input voltage AC
230 V
Color
white
input frequency
50 Hz
housing material
plastic
Max. output voltage DC
28 V
Storage temperature range (min)
-25 °C
consumption in standby mode
0.3 W
inrush current
165 A
load types
capacitive load
switching output
800 W
switching cycles
50,000 pieces
dimming function
No
communication type
CASAMBI
frequency band
2.403 – 2.479 GHz
Max. transmission power
+8 dBm
CASAMBI Repeater
Yes
protection class (IP)
IP20
certifications
CE, RoHS
customs tariff number
85365005
EAN
4260766557149
