YMOBM-RE-SWISSPIR

CASAMBI® motion detectors consist of integrated CASAMBI® technology and make it possible to control luminaires without wiring work. Use the CASAMBI® app to configure parameters such as brightness and automatically switching on and off at dusk or in the event of movement. This can result in savings of up to 90%. The sensors are available in various designs for ceiling mounting or recessed installation and with various detection zones from 5 to 28 m.

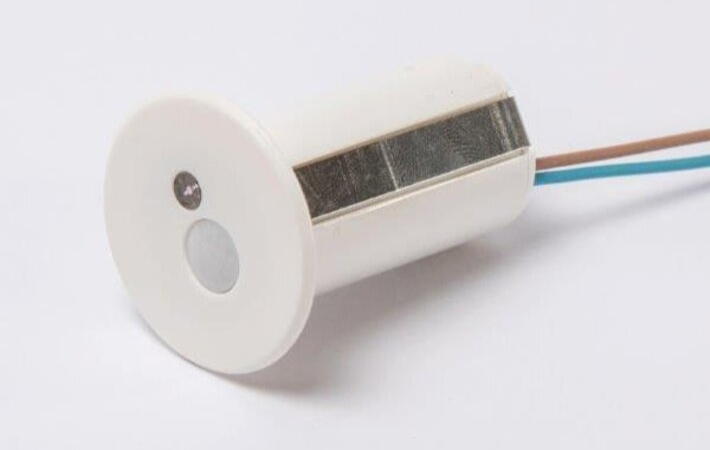

  • Passive infra-red sensor for recessed mounting in the ceiling
  • Detection zone of 5-7 m
  • Colour: white
  • IP20

Product data

Product dimensions Length
48 mm
Connection cross-section
0.5 mm²
Product dimensions Width
38 mm
Input voltage AC
220-240V / 50-60Hz V
Product weight
25 g
Ambient temperature (Min)
-20 °C
Color
white
Ambient temperature (Max)
+50 °C
Housing material
Plastic
Communication type
Bluetooth
Certification
CE
Max. transmission power
+4 dBm
Insulation class
2
Sensor technology
Infrared
Protection type (IP)
IP44
Angle of coverage
100 °
Storage temperature range (Min)
-25 °C
Sensor range
7 m
Storage temperature range (Max)
+65 °C
Mounting
Ceiling mounting
Customs tariff number
85371098
EAN
4250835512797
