BAT-LOGG® - SO THAT YOU NEVER RUN OUT OF JUICE

With the new BAT-LOGG ® battery monitoring system  , RP-Technik GmbH offers a pioneering solution for the  fully automatic, seamless monitoring of lead accumulators with 12 V block voltage. Checking each individual battery equipped with a BAT-LOGG ® sensor module  increases the safety and reliability  of UPS systems and  significantly reduces maintenance effort  and the associated costs.

All battery types listed here with 12 V block voltage can be equipped with BAT-LOGG ® .

BAT-LOGG® - SO THAT YOU NEVER RUN OUT OF JUICE

With the new BAT-LOGG ® battery monitoring system  , RP-Technik GmbH offers a pioneering solution for the  fully automatic, seamless monitoring of lead accumulators with 12 V block voltage. Checking each individual battery equipped with a BAT-LOGG ® sensor module  increases the safety and reliability  of UPS systems and  significantly reduces maintenance effort  and the associated costs.

All battery types listed here with 12 V block voltage can be equipped with BAT-LOGG ® .

The advantages at a glance

SECURITY

BAT-LOGG ® measures the voltage and temperature of each individual battery at short intervals, documents the measured values ​​and automatically reports errors.

OVERVIEW

The system is able to detect, document and communicate errors.

COST REDUCTION

BAT-LOGG ® simplifies scheduled maintenance operations because manual measuring and documentation of each individual battery becomes unnecessary.

EASY INSTALLATION

The sensors are conveniently and safely connected to the batteries using fork cable lugs.

OCCUPATIONAL SAFETY

BAT-LOGG ® puts an end to the manual measurement of each individual battery. This reduces the occupational risk of electric shock.

THIS IS HOW EASY IT IS TO MONITOR BATTERIES

Fit for the future with BAT-LOGG®. Record and log battery statuses – simple, compact and cost-saving. Try it out for yourself! It’s all explained in just one minute.

Sensor module

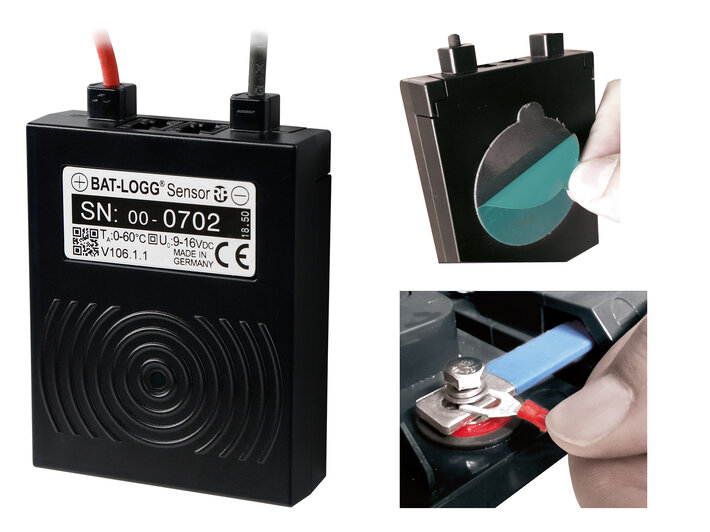

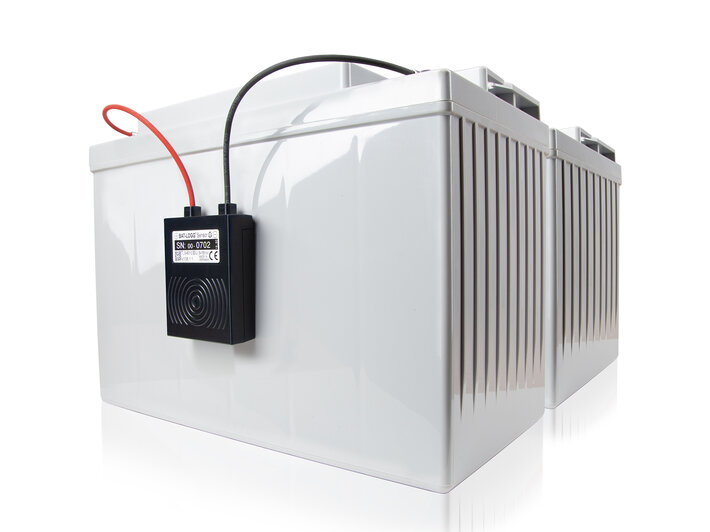

Every single battery is fitted with a BAT-LOGG® sensor module, which measures the voltage and temperature 5 to 6 times a minute. The measurement data is transferred via the energy cable – so there is no extra cabling – to the BAT-LOGG® terminal. Not only is data transferred in real time, but also repeatedly and redundantly over a longer period, which all contributes to a high level of robustness.

BAT-LOGG® is the only system to transfer measurement data using the energy cable – powerline transmission. This process requires no additional cabling. Alternatively, the data can also be transferred using a BUS cable. Simple and time-saving installation with forked cable lugs. Simply stick to the housing using the glue dot. Job done.

Terminal

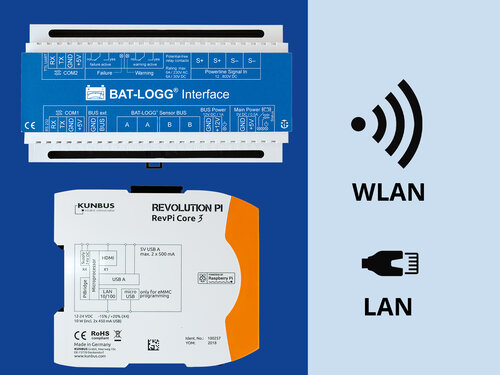

The BAT-LOGG® terminal is the control centre of the battery monitoring system. It comprises one or more BAT-LOGG® interface modules and an industrial PC based on Linux. This is where the measurement data sent by the sensors and received by the interface module is checked and stored in an SQLite database. The BAT-LOGG® terminal can be incorporated into an existing IT infrastructure via LAN or WLAN.

Software

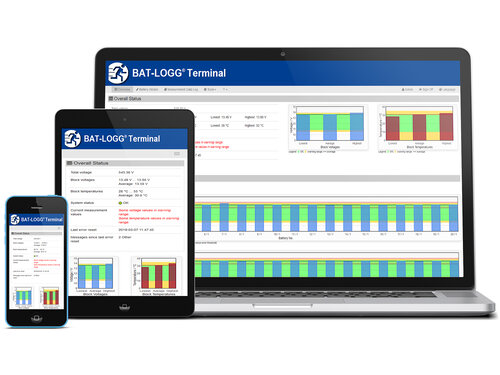

The BAT-LOGG® software in the terminal checks the measurement data on the basis of set error criteria and reports any errors and other events by sending an e-mail, for example. It also provides a web interface, enabling configuration, the display of measurement data, error analysis and data backup. It can be accessed from an end device with a web browser (PC, tablet or smartphone) provided the device is available in the same network.

Sensor module

Every single battery is fitted with a BAT-LOGG® sensor module, which measures the voltage and temperature 5 to 6 times a minute. The measurement data is transferred via the energy cable – so there is no extra cabling – to the BAT-LOGG® terminal. Not only is data transferred in real time, but also repeatedly and redundantly over a longer period, which all contributes to a high level of robustness.

BAT-LOGG® is the only system to transfer measurement data using the energy cable – powerline transmission. This process requires no additional cabling. Alternatively, the data can also be transferred using a BUS cable. Simple and time-saving installation with forked cable lugs. Simply stick to the housing using the glue dot. Job done.

Terminal

The BAT-LOGG® terminal is the control centre of the battery monitoring system. It comprises one or more BAT-LOGG® interface modules and an industrial PC based on Linux. This is where the measurement data sent by the sensors and received by the interface module is checked and stored in an SQLite database. The BAT-LOGG® terminal can be incorporated into an existing IT infrastructure via LAN or WLAN.

Software

The BAT-LOGG® software in the terminal checks the measurement data on the basis of set error criteria and reports any errors and other events by sending an e-mail, for example. It also provides a web interface, enabling configuration, the display of measurement data, error analysis and data backup. It can be accessed from an end device with a web browser (PC, tablet or smartphone) provided the device is available in the same network.
